BT8892A参数介绍            结合登辰易科技-压感按键技术（传感器微机械机构式）完美组合

CPU and Flexible IO

32bit High performance CPU with DSP instruction;
Program memory: internal 4M bit flash;
Flexible GPIO pins with Programmable pull-up and pull-down resistors;
Support GPIO wakeup or interrupt;

Bluetooth Radio

Compliant to Bluetooth 5.0 and BLE specification (QDID: 115952);
TX output power MAX +8dBm;
RX Sensitivity with -92dBm @2M EDR;
Support TWS communication with balance-efficiency Power consumption;
Support TWS Master-slave switch;

Audio Interface

High performance stereo DAC with 98dB SNR, support single end mode or differential mode;
Three channel high performance ADC with 92dB SNR;
Three channel MIC amplifier input, support single end mode or differential mode;
Support flexible audio EQ adjust;
Support Sample rate 8, 11.025, 12, 16, 22.05, 32, 44.1 and 48KHz;
Four channel Stereo Analog MUX;

Package

QFN32 4.00x4.00x0.75 e=0.40;

Temperature

Operating temperature: -40℃ to +85℃;
Storage temperature: -65℃ to +150℃;

CPU： RISC-V + DSP扩展 (125MHz)     封装： QFN32

蓝牙协议： BT 5.0 双模 (QDID: 115952)     Flash： 4 Mbit

DC-DC： 支持     内置充电： 支持       DAC： 立体声       ADC： 立体声      模块： MIC

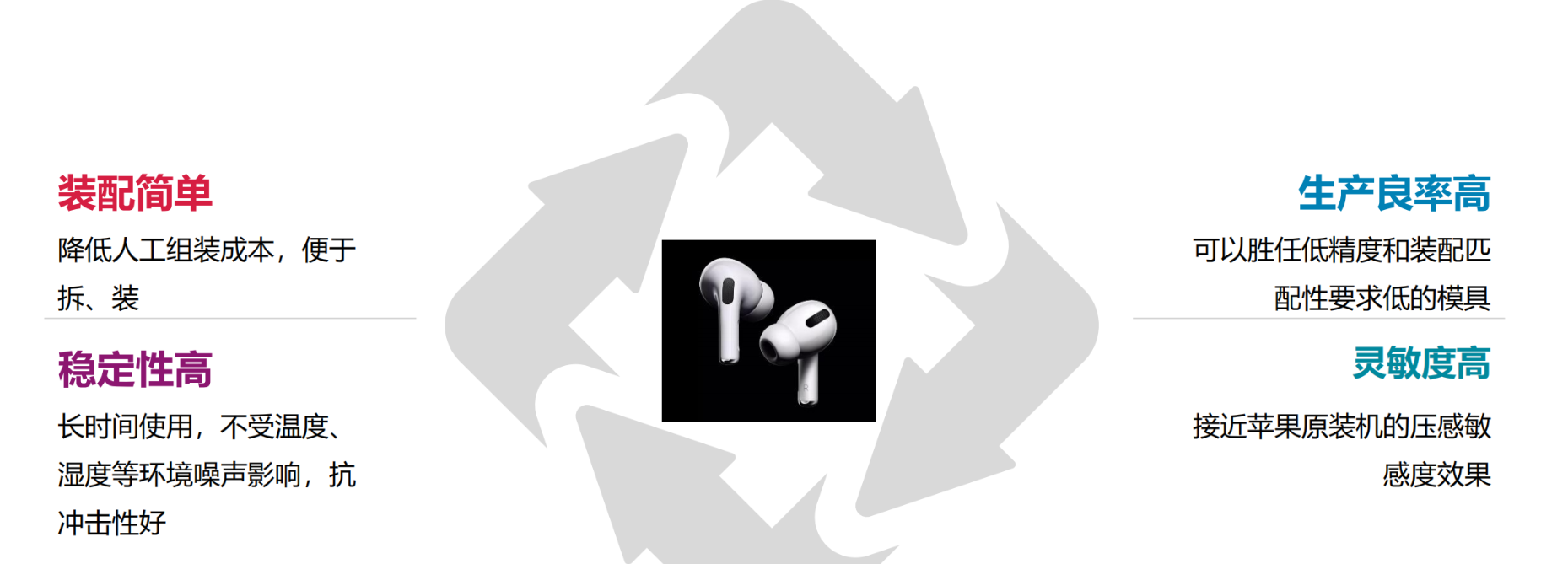

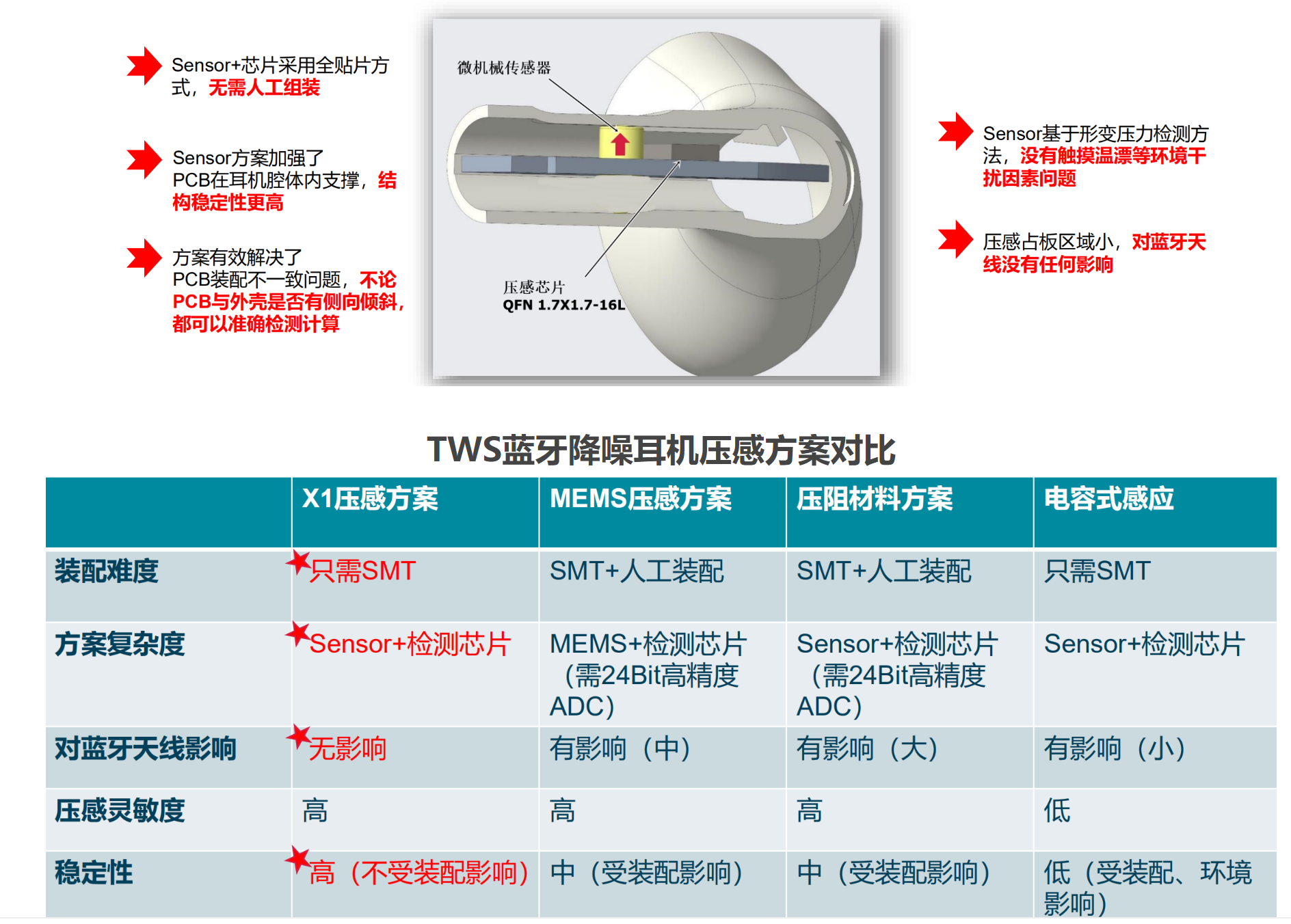

登辰易科技-压感按键技术（传感器微机械机构式）
